HEMP Control Line Range

All lines are individually filtered and feature inductive input to offer both good continuous wave EMC performance and superior transient handling performance. All lines feature high-energy varistor transient suppressors at the input end. The HEMP Control Line Range meets the pci requirements of MIL-STD -188-125-1 & -2.

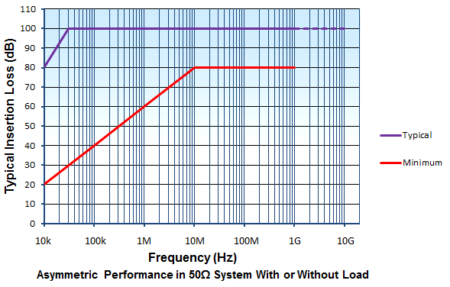

Insertion Loss Performance

Part Number	Voltage Rating VDC	Current Rating (A) @50ºC	No of Lines	DC Volt Drop per line (V)	Full Load Heat Dissipation per line (W)	Length	Width	Depth	Weight (kg)
DS33590	28	1	2	2.7	2.7	410	90	90	2.5
DS33591	28	1	4	2.7	2.7	410	175	90	5
DS33592	28	1	8	2.7	2.7	410	340	90	10
DS33593	28	2	2	1.3	2.6	410	90	90	2.5
DS33594	28	2	4	1.3	2.6	410	175	90	5
DS33595	28	2	8	1.3	2.6	410	340	90	10
DS33596	28	5	2	0.8	5	410	90	90	2.5
DS33597	28	5	4	0.8	5	410	175	90	5
DS33598	28	5	8	0.8	5	410	340	90	10

Part Number	Voltage Rating VDC	Current Rating (A) @50ºC	No of Lines	DC Volt Drop per line (V)	Full Load Heat Dissipation per line (W)	Length	Width	Depth	Weight (kg)
DS33800	48	1	2	2.7	2.7	410	90	90	2.5
DS33801	48	1	4	2.7	2.7	410	175	90	5
DS33802	48	1	8	2.7	2.7	410	340	90	10
DS33803	48	2	2	1.3	2.6	410	90	90	2.5
DS33804	48	2	4	1.3	2.6	410	175	90	5
DS33805	48	2	8	1.3	2.6	410	340	90	10
DS33806	48	5	2	0.8	5	410	90	90	2.5
DS33807	48	5	4	0.8	5	410	175	90	5
DS33808	48	5	8	0.8	5	410	340	90	10

Part Number	Voltage Rating VAC (50/60Hz)	Current Rating (A) @50ºC	No of Lines	DC Volt Drop per line (V)	Full Load Heat Dissipation per line (W)	Length	Width	Depth	Weight (kg)
DS33690	120	1	2	2.7	2.7	410	90	90	2.5
DS33691	120	1	4	2.7	2.7	410	175	90	5
DS33692	120	1	8	2.7	2.7	410	340	90	10
DS33693	120	2	2	1.3	2.6	410	90	90	2.5
DS33694	120	2	4	1.3	2.6	410	175	90	5
DS33695	120	2	8	1.3	2.6	410	340	90	10
DS33696	120	5	2	0.8	5	410	90	90	2.5
DS33697	120	5	4	0.8	5	410	175	90	5
DS33698	120	5	8	0.8	5	410	340	90	10

Part Number	Voltage Rating VAC (50/60Hz)	Current Rating (A) @50ºC	No of Lines	DC Volt Drop per line (V)	Full Load Heat Dissipation per line (W)	Length	Width	Depth	Weight (kg)
DS33670	250	1	2	2.7	2.7	410	90	90	2.5
DS33671	250	1	4	2.7	2.7	410	175	90	5
DS33672	250	1	8	2.7	2.7	410	340	90	10
DS33673	250	2	2	1.3	2.6	410	90	90	2.5
DS33674	250	2	4	1.3	2.6	410	175	90	5
DS33675	250	2	8	1.3	2.6	410	340	90	10
DS33676	250	5	2	0.8	5	410	90	90	2.5
DS33677	250	5	4	0.8	5	410	175	90	5
DS33678	250	5	8	0.8	5	410	340	90	10

	28VDC Range	48VDC Range	120VAC Range	250VAC Range
Rated Voltage	28VDC	48VDC	120VAC 50/60Hz	250VAC 50/60Hz
Rated Current	1A to 5A	1A to 5A	1A to 5A	1A to 5A
Test Voltage (each line to case)	300VDC	300VDC	2250VDC	2250VDC
Insulation Resistance	>100MΩ	>100MΩ	>100MΩ	>100MΩ
Discharge Resistors (each line –case)	560kΩ	560kΩ	560kΩ	560kΩ
Discharge Time to Below 34V	N/A	N/A	<10s	<10s
Varistor Voltage Rating	38VDC	65VDC	150VAC	275VAC
Varistor Peak Surge Current	2kA (8/20ms)	6.5kA (8/20ms)	8kA (8/20ms)	8kA (8/20ms)
Maximum Volt Drop at Rated Current	See tables
Operating Temperature Range	-40ºC to +85ºC
Full Load Temperature Range	-40ºC to +50ºC
Full Load Heat Dissipation	See product tables
Maximum Temperature Rise on Full Load	25 ºC
Insertion Loss	See graph

All MPE installation filters are tested using the test methods defined within the following standards and meet or exceed the relevant performance and/or safety criteria defined within these standards:

Mil-F-15733
Mil-Std-220C
CISPR17:2011/BS EN 55017:2011
UL1283
LVD 2014/35/EU
DEF-STAN 59-411/MIL-STD-461
RoHS (2011/65/EU) & LVD (2014/35/EU)
USACE 13.27.54.01
UFGS 13.49.20.01
UKCA & CE
MIL-STD-188-125-1&-2
DEF STAN 59-188-1&-2

DS XXXXX / X

Filter Part Number
Suffix C for standard cable entry
For other cable entries, see Installation Details page

e.g. DS33800#

HEMP Control Line Filters - Issue 11

DS XXXXX / X

Filter Part Number
Suffix C for standard cable entry
For other cable entries, see Installation Details page

e.g. DS33800#
